Steam vs. Chemical Activated Carbon: Which One Truly Meets Your Process Specifications?

A sudden drop in adsorption efficiency or an unexpected spike in column pressure can halt an entire production line. For plant operators and process engineers, premature bed exhaustion often traces back to one fundamental oversight: choosing the wrong activation method.

Procurement teams often treat activated carbon as a generic commodity. However, treating steam-activated and chemically activated variants as interchangeable materials creates costly operational bottlenecks downstream.

The choice between these two media is not about finding the superior adsorbent. It is about matching the physical and chemical properties of the carbon to the exact molecular dynamics of your process stream. At Nanfang, our engineering team works with operators to align operational variables with the proper carbon matrix.

If you are experiencing slow adsorption cycles, high product contamination, or excessive carbon usage, review your operational parameters with our engineering team today. Submit your feed stream parameters to receive a custom carbon evaluation.

Manufacturing Mechanisms: How Activation Controls Pore Architecture

The operational capabilities of an activated carbon bed depend entirely on the reaction mechanisms used during manufacturing. While both processes produce a high surface area, they use entirely different chemical pathways to build that internal matrix.

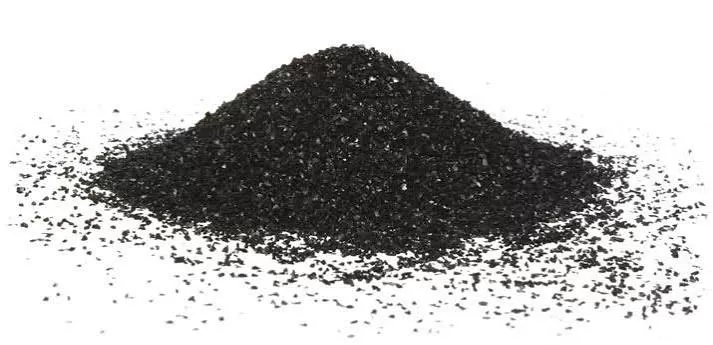

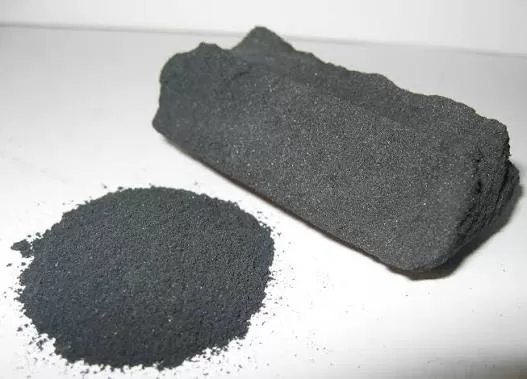

The Chemical Activation Process

The chemical activation process typically uses raw, uncarbonized carbonaceous matter, most commonly wood sawdust, peat, or agricultural residues. Manufacturers blend the raw feedstock with a powerful dehydrating and oxidizing chemical reagent.

Common activation agents include:

• Phosphoric acid (H3PO4): The industry standard for liquid-phase, food-grade, and pharmaceutical purifications.
• Zinc chloride (ZnCl2): Historically common, but increasingly restricted due to environmental and heavy-metal residue concerns.
• Potassium hydroxide (KOH): Used primarily to create specialized, ultra-high surface area carbons for energy storage or critical gas catalysis.

In standard phosphoric acid activated carbon manufacturing, the chemical agent acts as an acid catalyst. It accelerates dehydration while promoting thermal degradation at lower temperatures, typically between 400°C and 600°C.

As the mixture heats, the phosphoric acid reacts with the biopolymers in the biomass (such as cellulose, hemicellulose, and lignin). It forms phosphate ester cross-links. These chemical bridges occupy space inside the matrix and physically prevent the carbon skeleton from shrinking during thermal decomposition.

After the thermal stage, operators wash the carbon thoroughly with water and acid-recovery baths. Removing the chemical leaves behind open, interconnected pores. Because the chemical agent held the matrix open during carbonization, the finished wood-based chemical activated carbon features a high proportion of transport channels and wide internal voids.

Steam Activation: High-Temperature Gasification

Steam activation relies on physical, thermal oxidation. It requires a two-step sequence: separate carbonization followed by high-temperature steam gasification.

Feedstocks such as coconut shell, anthracite, or bituminous coal are first charred in the absence of oxygen at 600°C to 800°C to drive off volatile organics. The resulting char then enters a rotary kiln or fluidized bed reactor at temperatures ranging from 850°C to 1050°C in the presence of steam.

At these elevated temperatures, the water gas reaction takes place:

C + H2O → CO + H2

Steam molecules selectively burn away internal carbon atoms within the carbonized matrix. This selective burn-off drills deep, narrow pathways directly through the dense graphitic layers. Because the initial char has a dense crystalline structure, steam primarily creates narrow fissures rather than broad cavities.

Mesopores vs. Micropores: The Structural Outcome

The structural difference between the two activation paths centers on pore diameter:

• Micropores: Diameters less than 2 nanometers (nm).
• Mesopores: Diameters between 2 nm and 50 nm.
• Macropores: Diameters greater than 50 nm (acting purely as transit avenues).

Steam activation forms a predominantly microporous network. These narrow slits trap compact, low-molecular-weight molecules via strong Van der Waals forces.

Conversely, chemical activated carbon develops an open, mesoporous activated carbon structure. The wide mesopores provide minimal steric resistance. This allows bulky organic structures, complex isomers, and macromolecular color bodies to diffuse rapidly into the inner particle matrix without blocking surface pores.

Head-to-Head Comparison: Core Technical Parameters

Evaluating these media on a specification sheet requires looking beyond simple total surface area numbers like the BET surface area. The following comparison outlines the critical engineering parameters that separate these two materials.

Process Specification Matching: When to Choose Chemical Activated Carbon

Selecting media based on price per metric ton alone often leads to unexpected operating costs. When an engineering stream contains complex organics, chemical activated carbon is typically the correct technical choice.

1. Decolorization and Purification of Bulky Molecules

In the production of food items, organic acids, and nutritional products, color bodies consist of long-chain caramel compounds, polyphenols, and melanoidins. These molecules have molecular weights ranging from hundreds to tens of thousands of Daltons.

• Sugar Syrup and Corn Wet-Milling: Steam-activated coconut carbons reject these bulky colorants because their entryways are narrower than the molecules themselves. Wood-based chemical activated carbon provides open pathways that draw in and hold these large color bodies, yielding clear, high-purity syrups.
• Citric Acid and Lactic Acid: Fermentation broths generate complex byproducts. The mesoporous network of chemical carbon captures these impurities during polishing steps without prematurely fouling the carbon surface.

2. Active Pharmaceutical Ingredients (APIs) and Fine Chemicals

In pharmaceutical processing, purity standards are strict, and product yields must remain predictable. Chemical activated carbon, produced under controlled processes like those at Nanfang, provides crucial operational advantages:

• Steric Access: Complex synthetic intermediates migrate easily through wide mesopores, bringing target contaminants directly to internal binding sites.
• Rapid Mass Transfer: Fast adsorption kinetics shorten residence time requirements. This keeps crystallization batches moving efficiently and avoids product degradation.
• Low Minerals: Because the wood base receives an extensive acid-wash cycle, it contains virtually no heavy metals or silica that could leach into active drug solutions.

3. Natural Organic Matter (NOM) and High-Molecular-Weight Water Contaminants

While municipal drinking water systems rely on steam-activated coal carbon to remove small taste and odor molecules, chemical activated carbon excels when treating surface water rich in humic acids, fulvic acids, and industrial dyes.

These large organic compounds quickly blind microporous carbons through competitive pore blocking. A mesoporous activated carbon matrix captures these large organics, preventing premature breakthrough across the carbon bed.

4. Catalyst Support Matrix

Industrial heterogeneous catalyst beds require an adsorbent that can support precious metals like platinum, palladium, or ruthenium. The mesopores in chemical activated carbon allow metal catalyst crystallites to disperse evenly without clumping together inside narrow micropores. This dispersion keeps active catalytic sites exposed to reactants throughout the process cycle.

When Is Steam Activated Carbon the Better Fit?

Chemical activation is not universally suited for every application. Steam activated carbon remains the preferred option for:

• Gas-Phase Adsorption: Capturing small volatile organic compounds (VOCs), odor control, and solvent recovery beds.
• Trace Contaminant Removal: Stripping small molecules like chloroform, benzene, methyl tertiary-butyl ether (MTBE), and trihalomethanes from water.
• High-Abrasion Systems: Moving-bed systems, fluidized adsorbers, and continuous thermal regeneration systems that require the high mechanical strength of coconut shell or coal carbons.


Operational and Cost Factors: CAPEX vs. OPEX Realities

Plant managers often balance material costs against process stability. A technical comparison shows that initial media purchase price is only one part of total operating expense.

Adsorption Kinetics and System Footprint

Chemical activated carbon has a low apparent bulk density, often between 0.28 and 0.35 g/cm³. In contrast, coal-based steam carbon weighs roughly 0.50 g/cm³. Because wood-based chemical carbon weighs less per unit volume, filling a vessel requires fewer kilograms of material.

Furthermore, because chemical carbon exhibits faster adsorption kinetics for large molecules, the mass transfer zone (MTZ) is notably shorter. A shorter MTZ allows engineers to run at higher superficial velocities or design smaller contactor vessels, reducing initial capital expenditures (CAPEX).

Thermal Regeneration and Attrition Losses

Industrial thermal reactivation facilities run at temperatures between 700°C and 850°C. Steam-activated coal and coconut carbons withstand these repeated thermal cycles well, losing only 5% to 10% of their mass per run.

Chemically activated wood carbons have thinner pore walls and lower mechanical hardness. If subjected to high-temperature thermal reactivation kilns, their mesopores can collapse, leading to higher attrition losses. As a result, operations using chemical carbon usually treat it as a single-use consumable or regenerate it on-site using chemical solvent washes and low-temperature steam stripping.

Regulatory Compliance and Impurity Leaching

When selecting a chemical activated carbon for food or pharmaceutical use, engineers must monitor chemical leaching. Trace levels of residual phosphate can remain trapped in the pore spaces if the manufacturing wash phase is incomplete.

Nanfang maintains strict acid-washing and neutralization steps on its chemical activation lines. This process prevents unintended pH shifts or phosphate leaching in finished products, keeping production lots fully compliant with Food Chemicals Codex (FCC), USP, and NSF/ANSI 61 requirements.

Selection Checklist: Choose Your Media in Three Steps

When designing a new adsorption system or troubleshooting an existing column, use this three-step checklist to identify the correct carbon matrix:

1. If your target impurities consist of low-molecular-weight solvents, small VOCs, or light chlorinated compounds (< 2 nm), choose steam-activated carbon. If your targets are dyes, proteins, color bodies, humic substances, or large synthetic organics (> 2 nm), use chemical activated carbon.

2. For vapor streams and fixed beds running under high hydraulic pressures, select hard, steam-activated coconut or coal media. For liquid-phase batch processes, stirring tanks, or low-pressure gravity systems handling viscous broths, choose wood-based chemical activated carbon.

3. If your process calls for a basic surface with high mechanical stability, steam carbon meets the standard. If your process requires acidic surface groups that improve the dispersion of polar compounds and basic dyes, chemically activated media is the right match.


Engineering Consultation and Customized Solutions

Using the wrong activated carbon can result in off-spec batches, high pressure drops, and wasted operating budget. Matching pore diameter and surface chemistry to your target contaminants keeps columns running reliably month after month.

Nanfang manufactures and tests high-performance steam and chemical activated carbons for demanding purification facilities worldwide. Our engineering team can analyze your feed stream, run carbon isotherm tests, and supply the ideal grade for your operating targets.

Contact our technical team today to discuss your process specifications, request product data sheets, or schedule a pilot sample evaluation.

Frequently Asked Questions

Q1: Why does wood-based chemical activated carbon have a lower bulk density than coal-based steam carbon?
A1: Wood has a naturally fibrous, porous cellular architecture composed of cellulose and lignin. The chemical activation process removes these biopolymers without allowing the matrix to shrink, creating large, open mesopores. In contrast, coal has an inherently dense, highly packed mineral and carbonaceous structure, which yields a denser finished material with narrow micropores.

Q2: Can residual phosphate from the activation process leach into my liquid stream?
A2: If the carbon is poorly washed during manufacturing, trace amounts of free or lightly bound phosphate can leach into process solutions, causing unwanted pH drops. Quality-focused manufacturers use thorough multi-stage acid and demineralized water washes to lock down residual phosphate and stabilize the finished carbon's pH.

Q3: Why isn't coconut shell carbon commonly activated using phosphoric acid?
A3: Coconut shells feature a very dense, crystalline lignocellulosic structure with low natural permeability. Phosphoric acid cannot effectively penetrate this dense matrix at low temperatures. As a result, coconut shell is best suited for high-temperature steam activation, which slowly gasifies the dense carbon into an ultra-microporous network.

Q4: How does pore size distribution impact adsorption kinetics?
A4: Smaller micropores force incoming molecules to move via slow, intra-particle diffusion, creating high resistance and a long Mass Transfer Zone (MTZ). The larger mesopores found in chemical activated carbon act as broad highways. They allow larger molecules to reach internal adsorption sites quickly, reducing cycle times and bed footprint requirements.

Q5: Can chemical activated carbon be thermally reactivated after use?
A5: While possible, thermal reactivation of chemical carbon requires strict kiln atmosphere control. Because chemically activated wood carbon has thinner pore walls, high-temperature thermal reactivation runs can burn away useful mesopore walls, resulting in significant yield loss. Many plants find it more cost-effective to regenerate chemically via solvent extraction, steam cleaning, or using the carbon as a single-use consumable.
